11” Wood BandSaw
$1,499.99

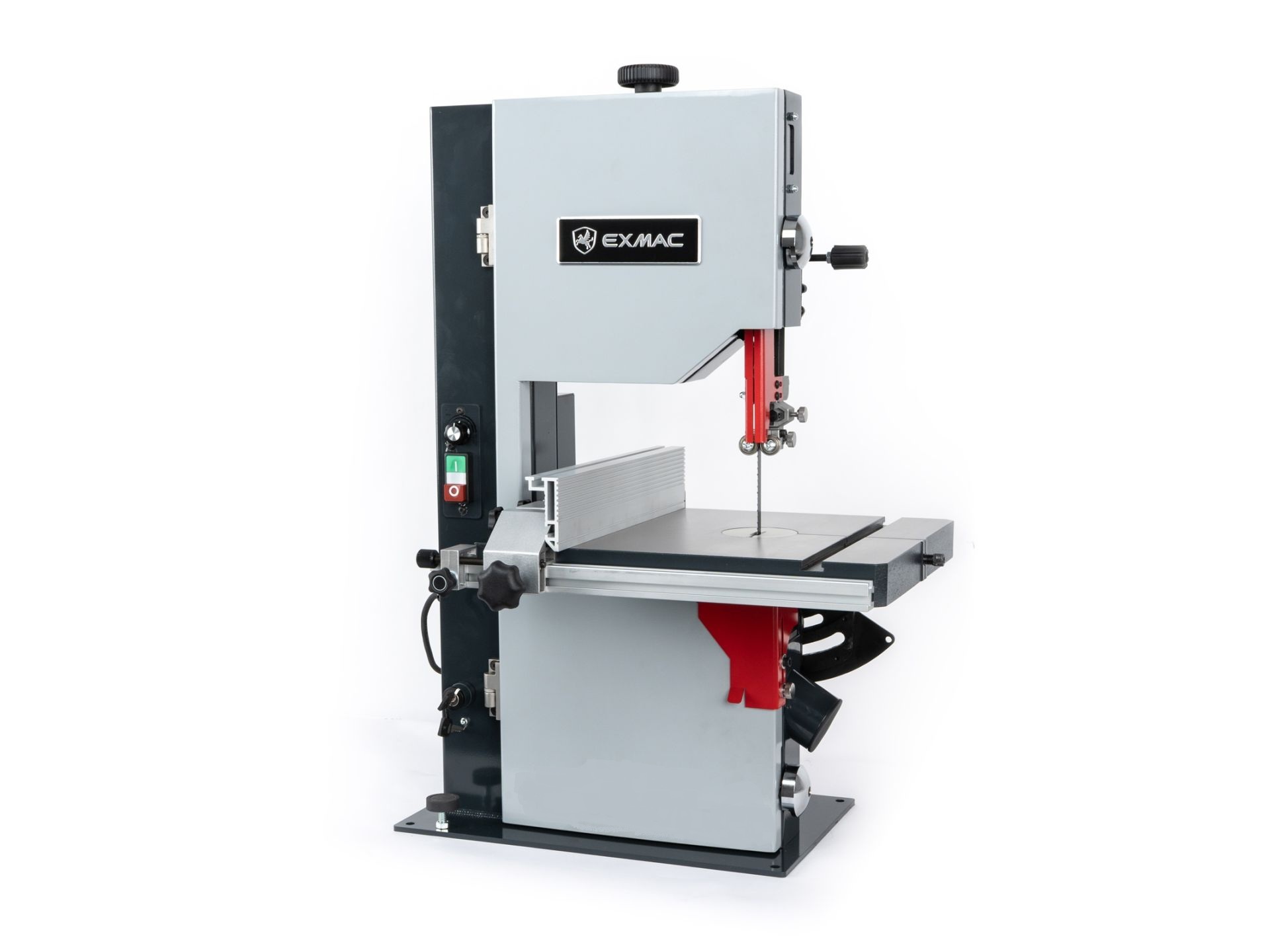

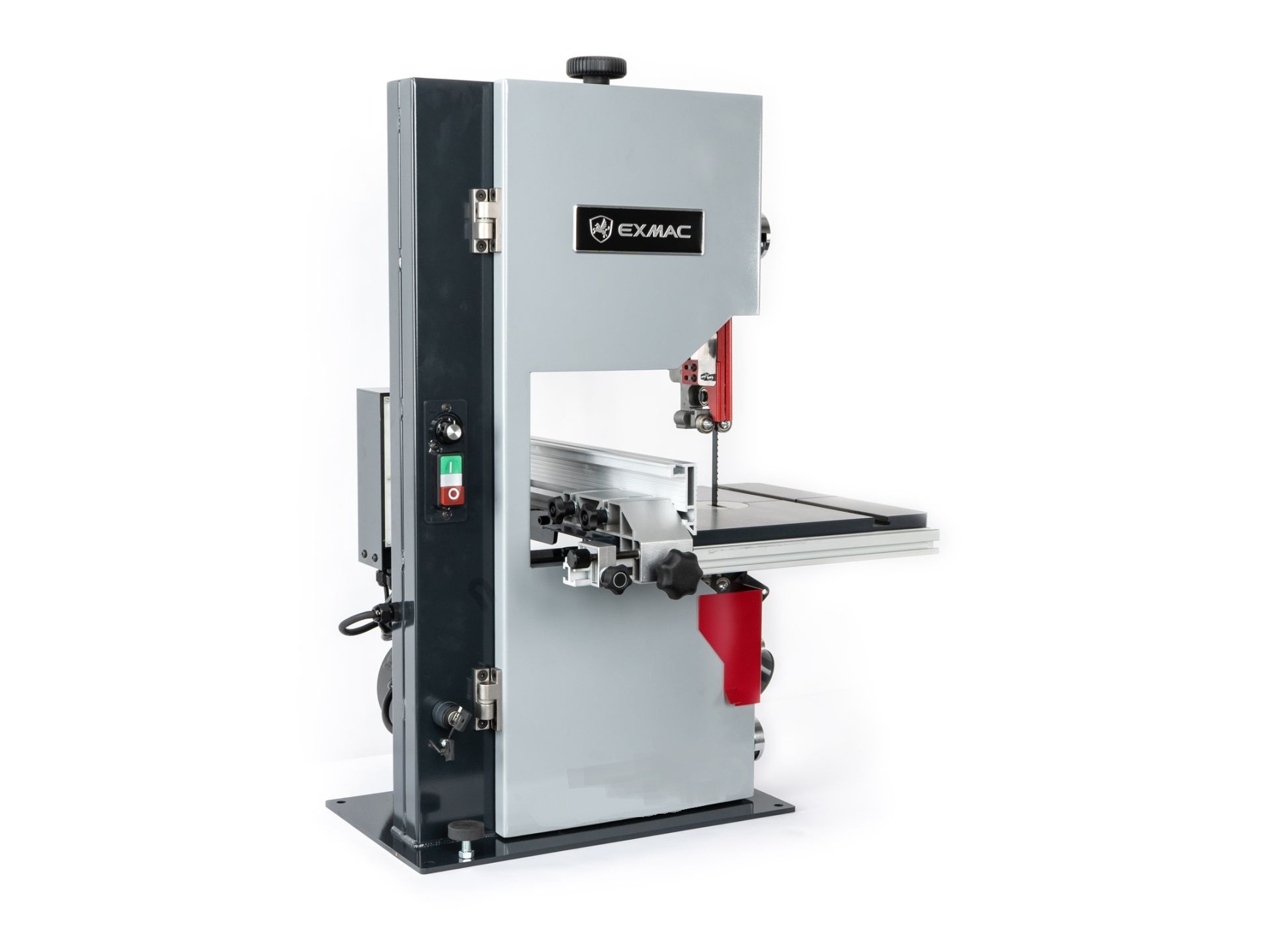

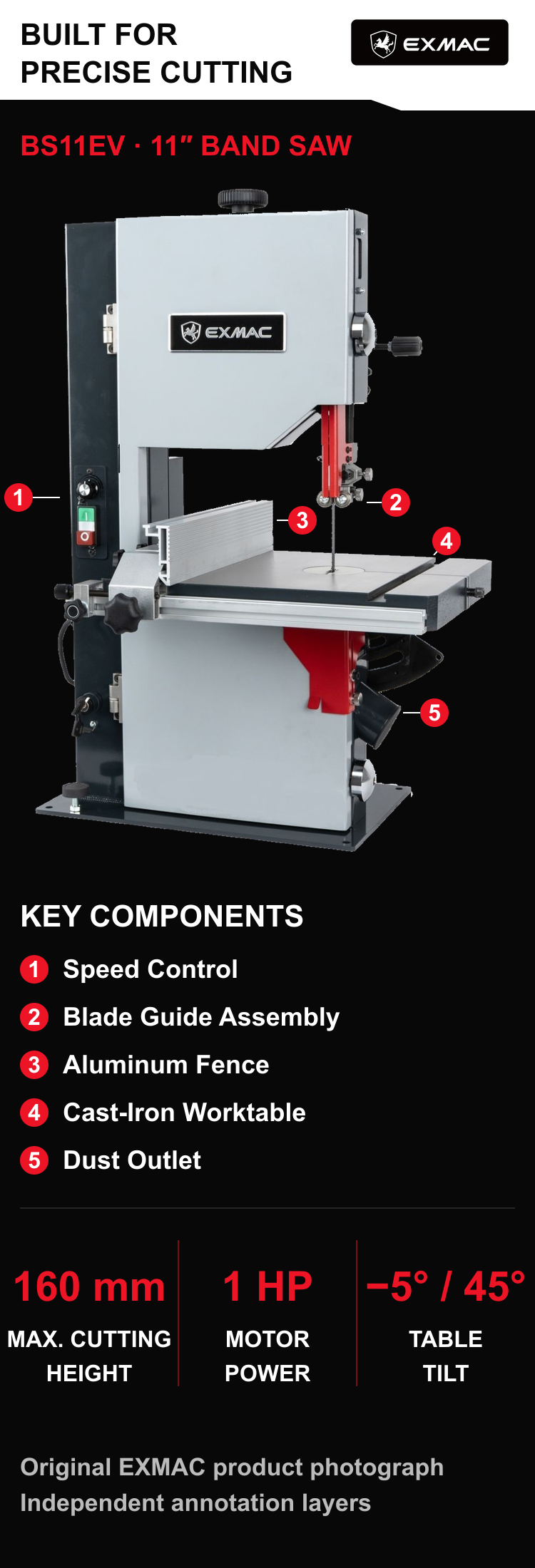

The EXMAC BS11EV is a compact bench-mounted band saw with a welded steel chassis, cast-iron worktable and inverter-controlled drive.
- 160 mm (6.3-inch) maximum cutting height

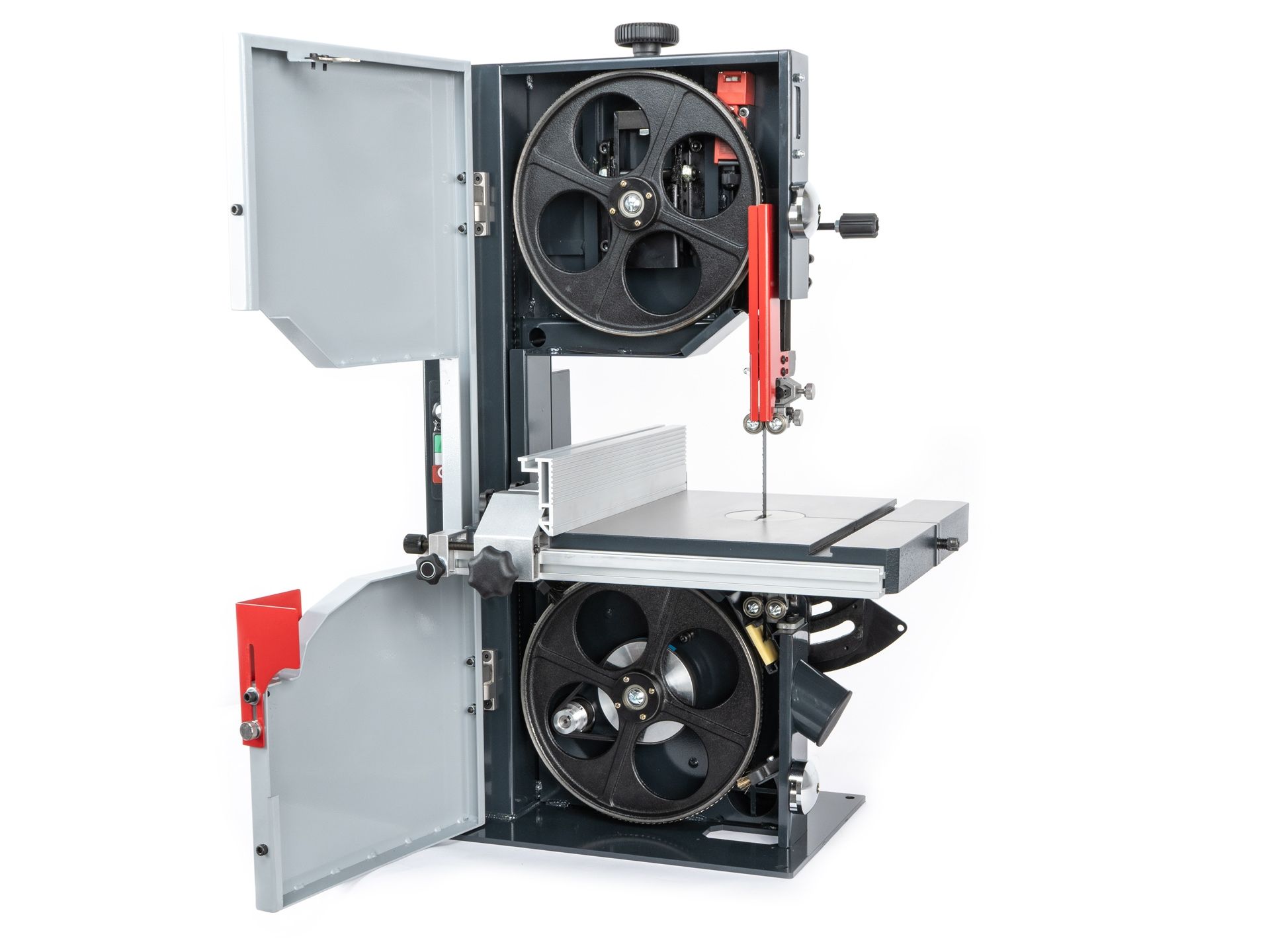

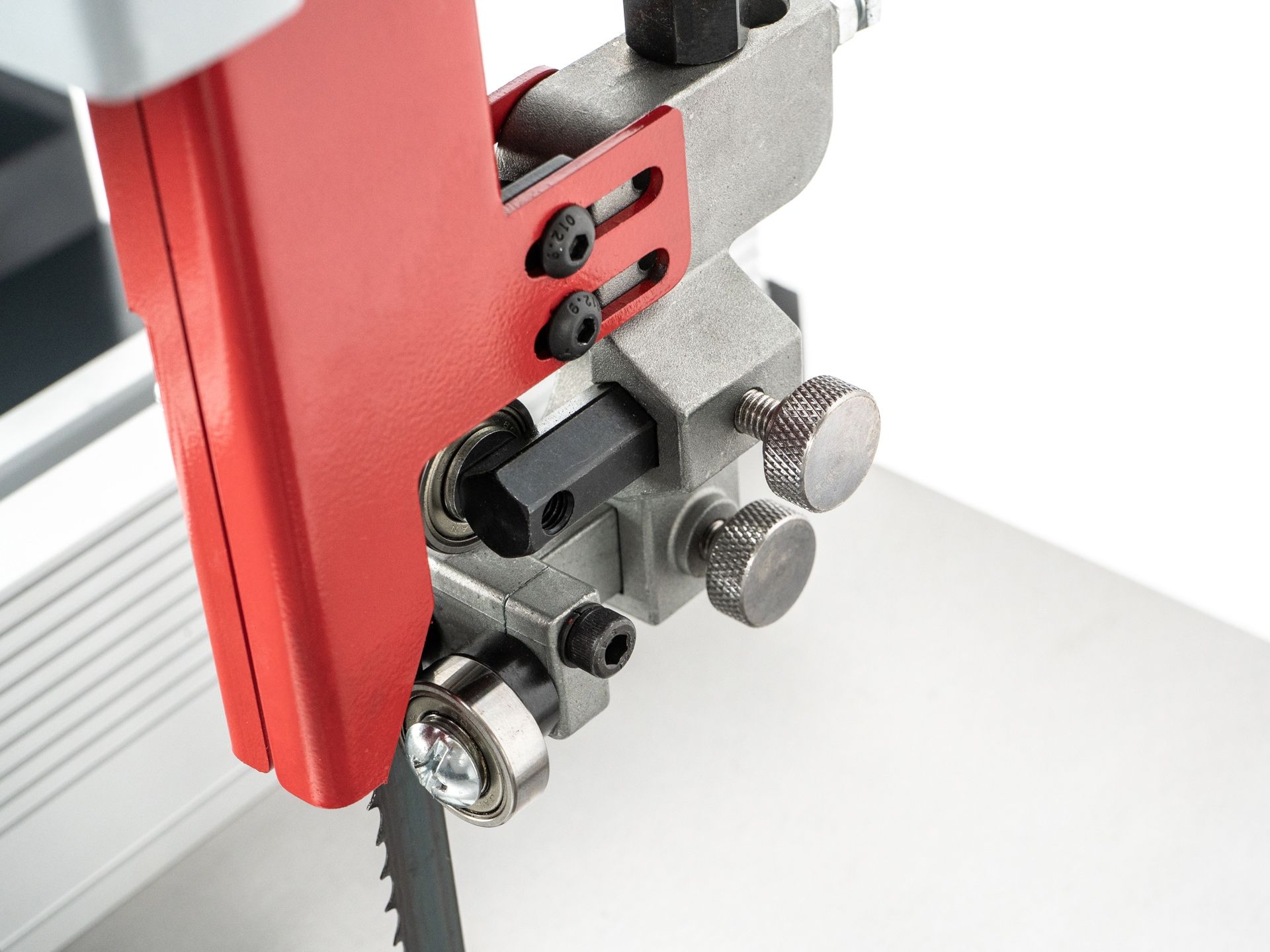

- Ball-bearing upper and lower blade guides
- Table tilt from -5° to 45°
- 63 mm dust-extraction outlet
- Supplied with a 12 mm, 6 TPI general-purpose blade
Features & Specs

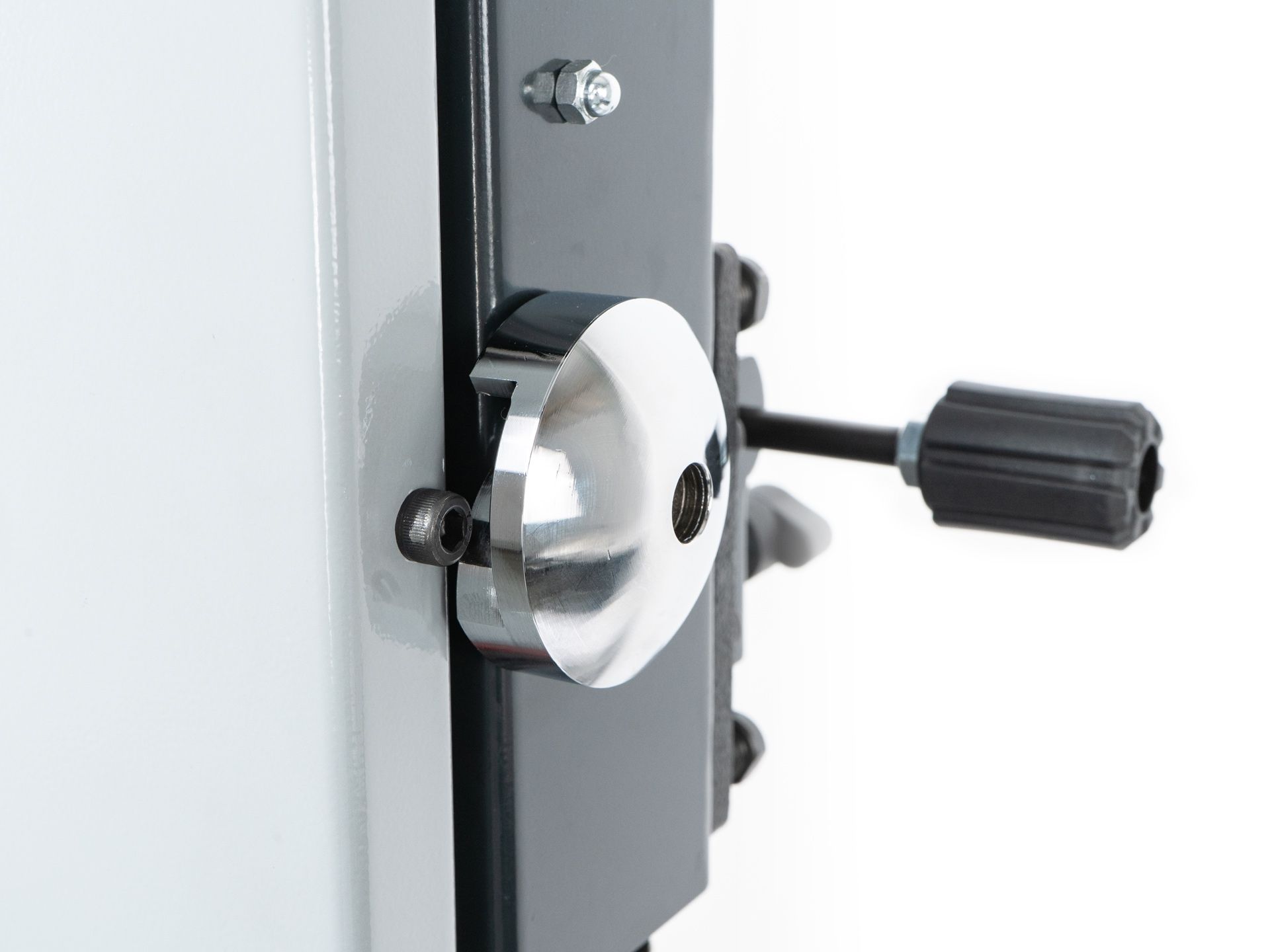

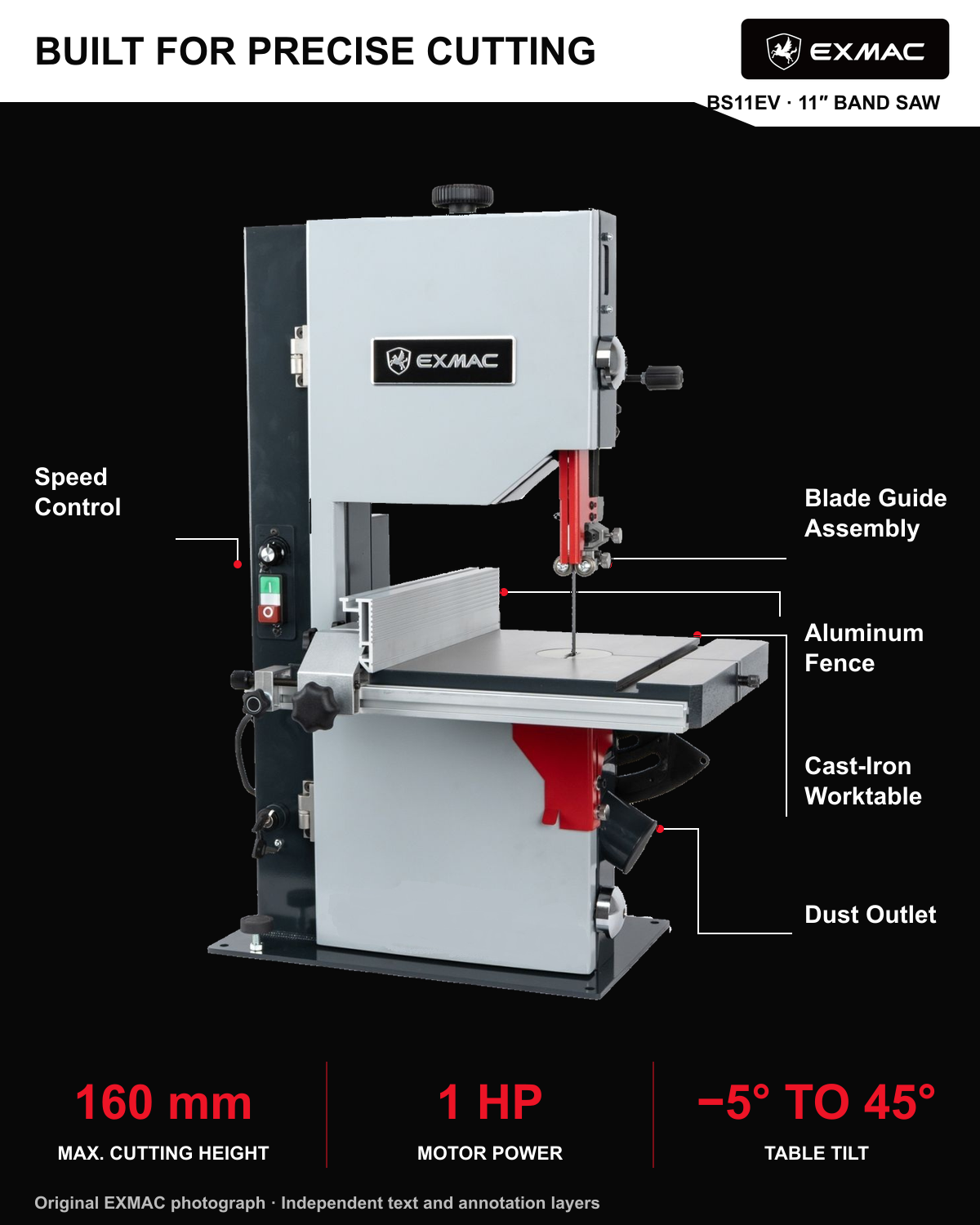

The EXMAC BS11EV is a bench-mounted band saw for compact workshops. Its welded steel chassis and cast-iron table support precise cutting, with ball-bearing blade guides and a rack-and-pinion guide-height adjustment.
Controlled Cutting

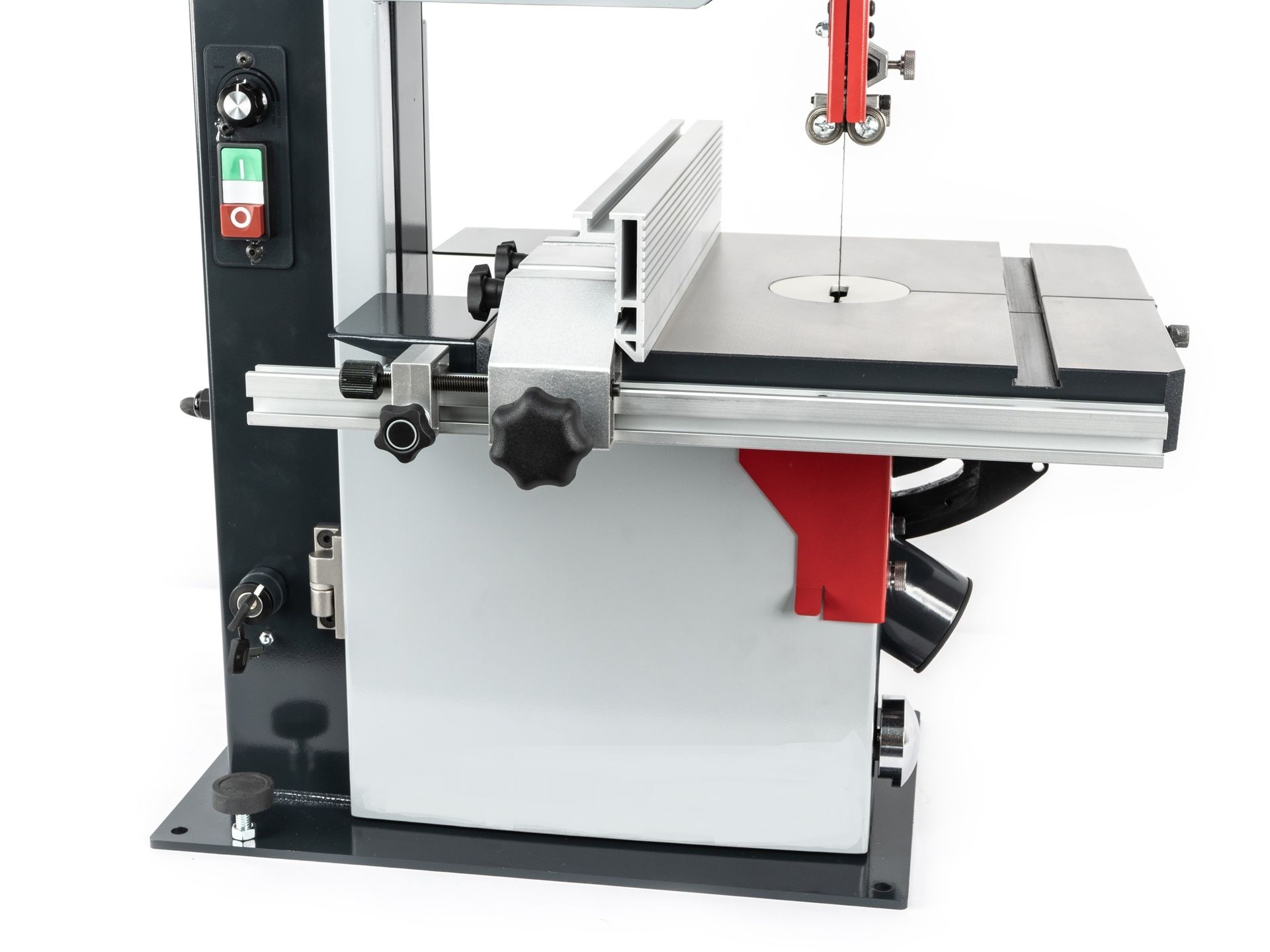

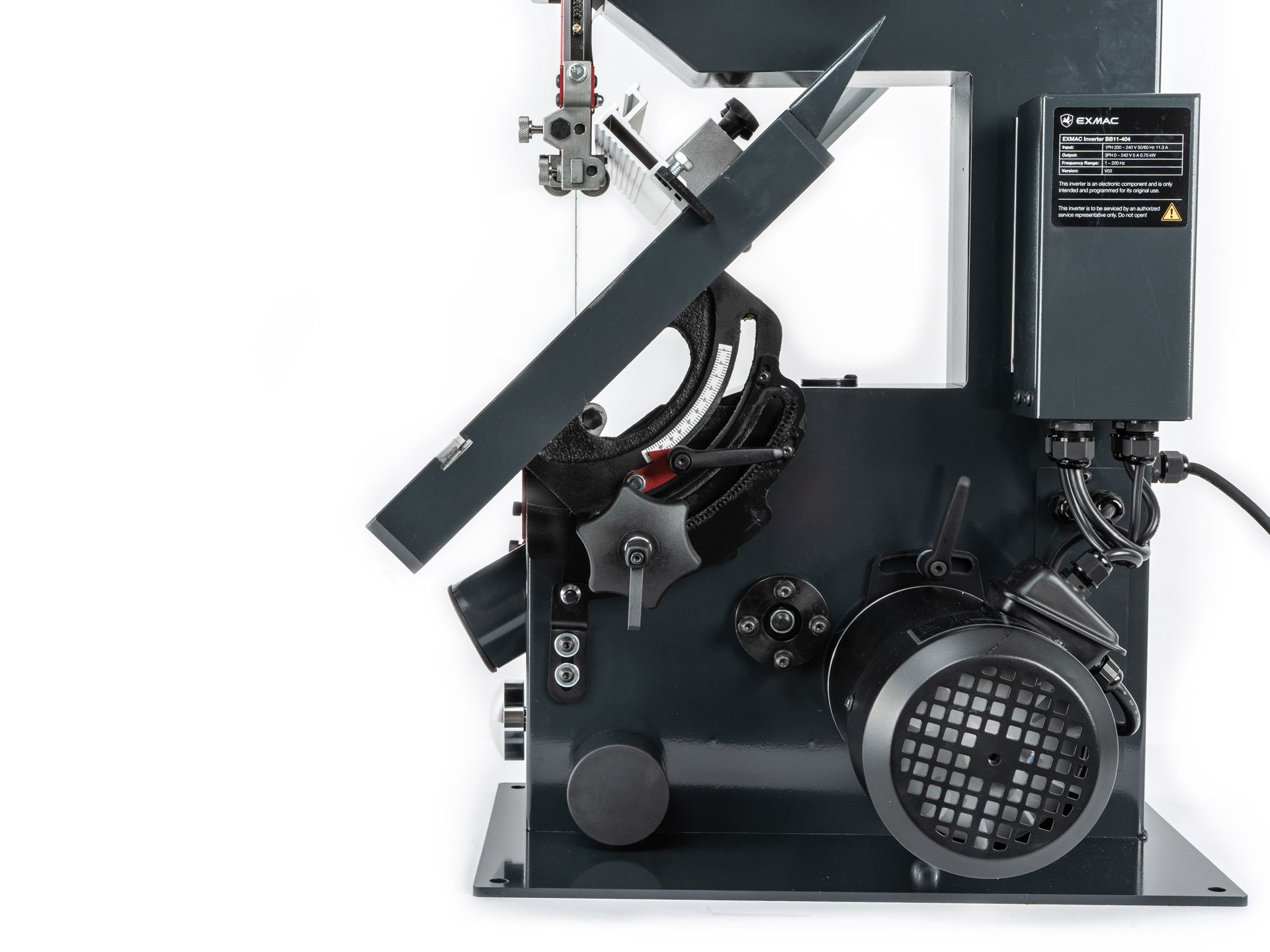

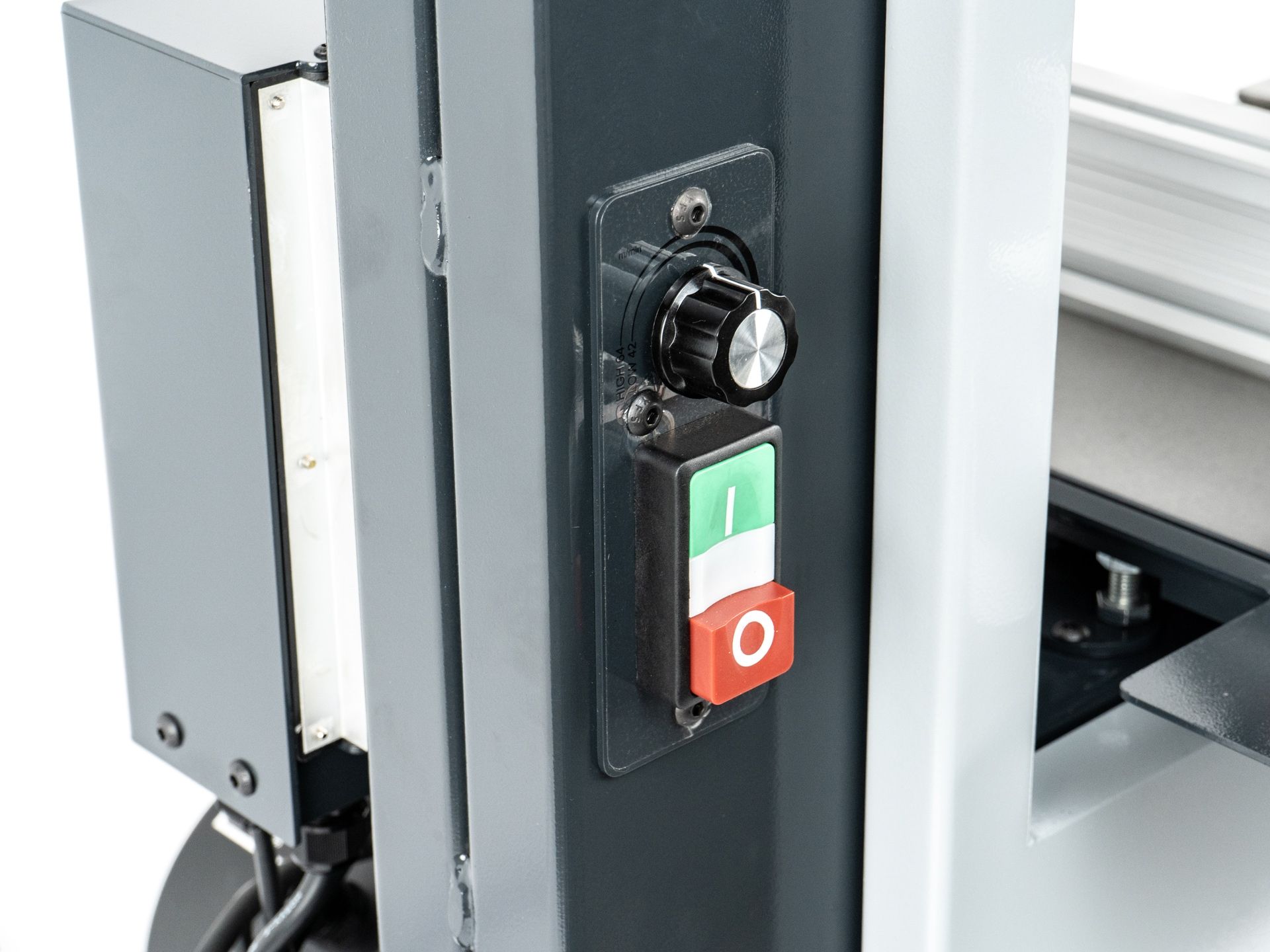

The inverter-controlled drive supports variable-speed operation. The worktable tilts from -5° to 45°, and a 63 mm extraction outlet allows connection to suitable dust collection.
Workshop Setup
The machine is supplied with a 12 mm x 6 TPI general-purpose blade. Optional accessories are sold separately; verify BS11EV compatibility before ordering.
Safety: Obtain current, model-specific operating instructions from EXMAC before installation or use. Keep blade guards fitted and arrange suitable dust collection.
Warranty
2 YEAR LIMITED WARRANTY
The EXMAC BS11EV machine carries a two-year limited warranty for the original purchaser, subject to EXMAC's official warranty terms. Accessories have a separate one-year warranty.
Conditions & Warranty Claims
Coverage is subject to the limitations and exclusions in the official EXMAC warranty document. Misuse, unauthorized modifications or repairs, inadequate maintenance and consumable components may be excluded.
Keep your proof of purchase. When requesting warranty assistance from EXMAC, have the product model and serial number available. Product registration is not required for warranty eligibility.
Read EXMAC's full limited warranty and claim instructions (PDF)
Product Size & Specifications
| Maximum cutting height | 160 mm (6.3 inches) |
| Maximum width of cut | 250 mm (9.8 inches) |
| Table size | 350 x 350 mm (13.8 x 13.8 inches) |
| Table tilt | -5° to 45° |
| Motor power | 1 HP |
| Drive | Inverter-controlled |
| Blade length | 1858 mm (73.2 inches) |
| Wheel diameter | 270 mm (10.6 inches) |
| Supplied blade | 12 mm x 6 TPI |
| Dust extraction outlet | 63 mm |
Confirm the current operating manual and machine nameplate for electrical requirements and installation before use.

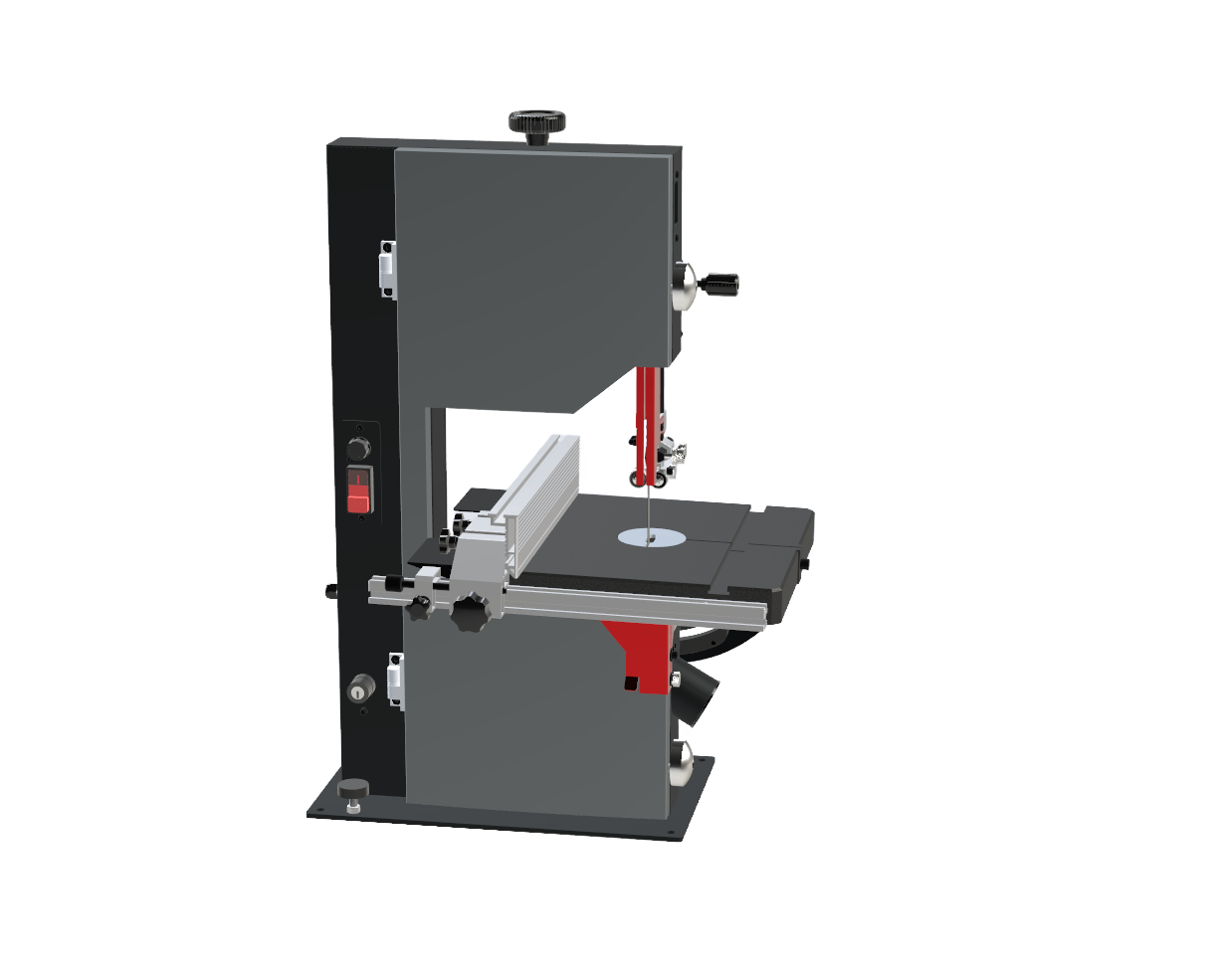

360° Product View
Original EXMAC manufacturer 360° illustration. Refer to product photographs for actual branding and details.

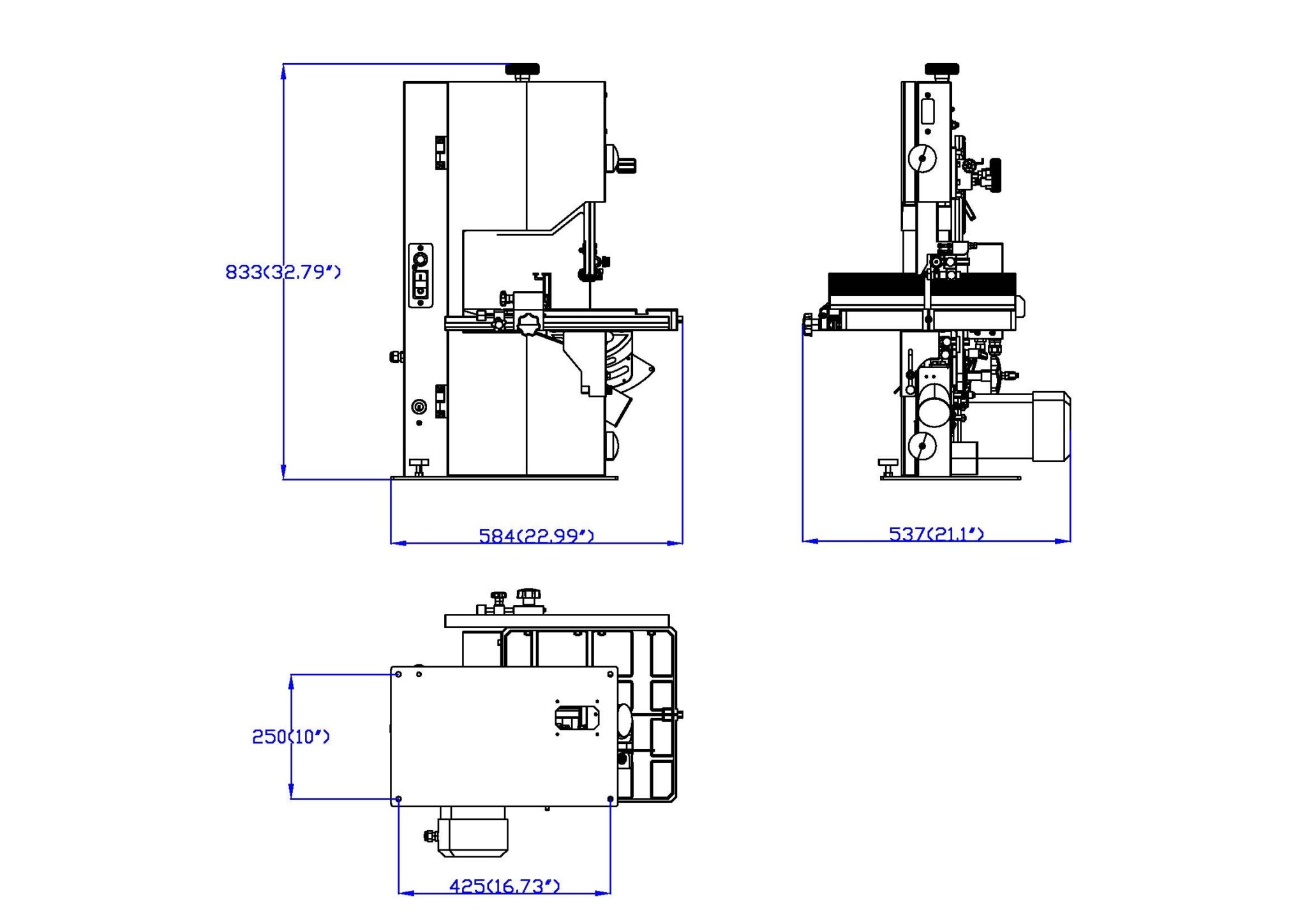

Manufacturer Dimension Drawing
Original manufacturer drawing; measurements shown differ from the website specification table. Confirm installation dimensions with EXMAC before purchase.
Manual
View EXMAC BS11EV Manufacturer Manual (PDF)
The manufacturer PDF contains version and model-text discrepancies. Obtain corrected, model-specific operating instructions from EXMAC before installation or use.
