16” Woodturning Lathe
$3,099.99

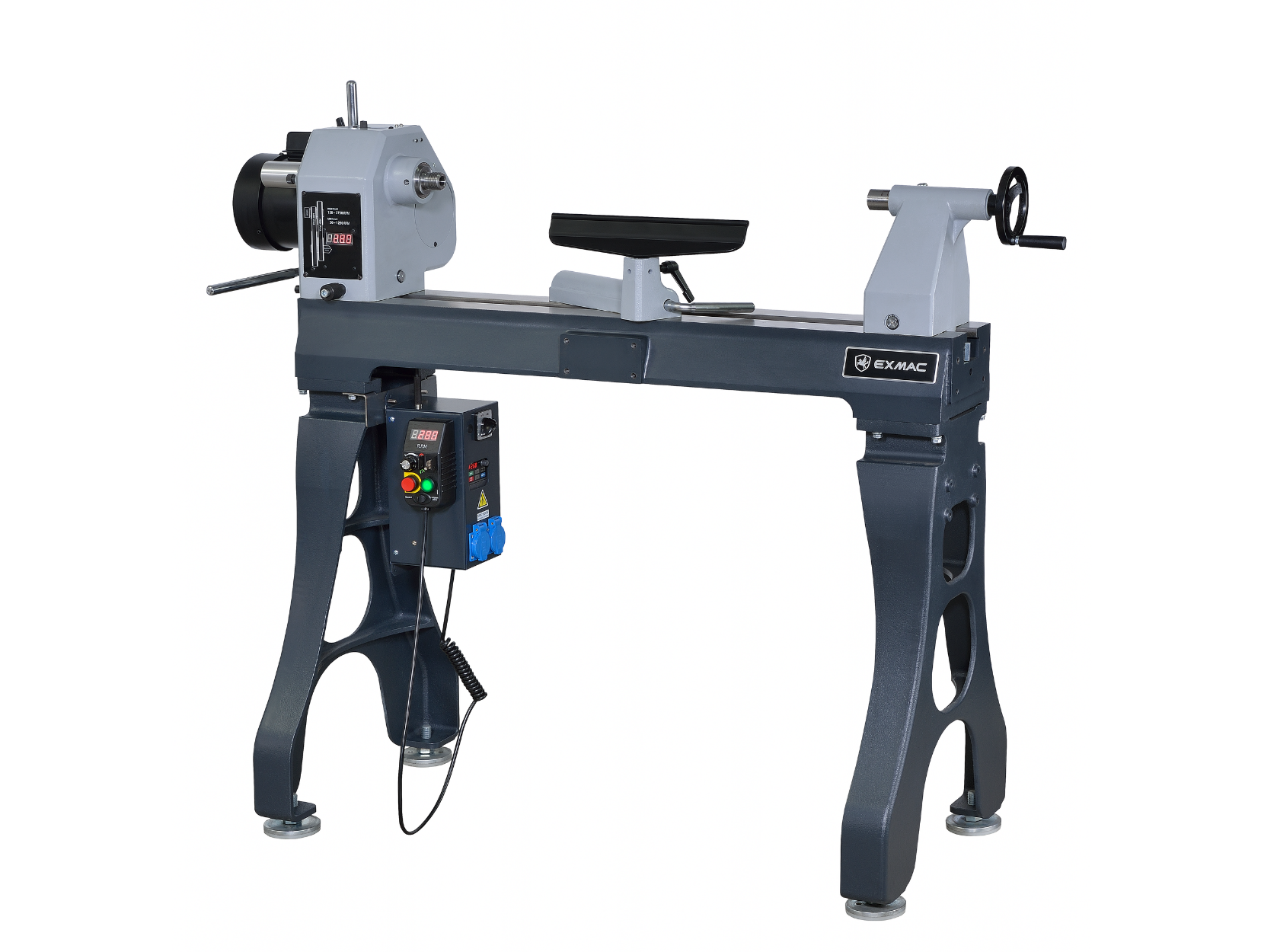

The EXMAC EL16 is a 16-inch woodturning lathe built for bowl and spindle turning, with a cast-iron bed and a 2 HP motor.
- 16-inch swing over the bed
- Sliding and rotating headstock for flexible positioning
- Variable-speed control with forward and reverse operation
- 36-position spindle indexing at 10-degree intervals
- Magnetic control console for convenient positioning
- MT2 headstock and tailstock tapers; 1-1/4-inch x 8 TPI spindle thread
Features & Specs

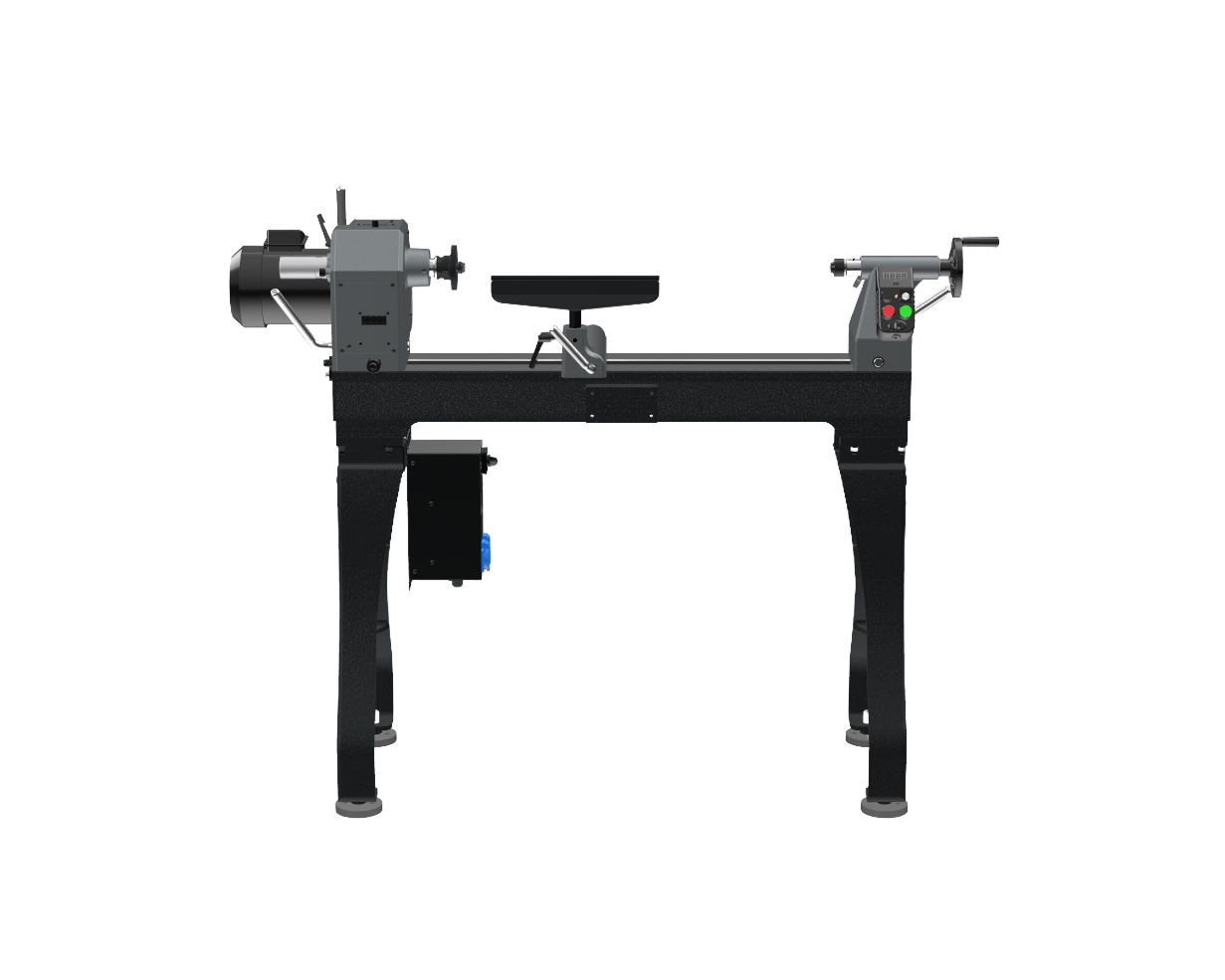

Drag left or right to explore the EXMAC EL16 in 360°.

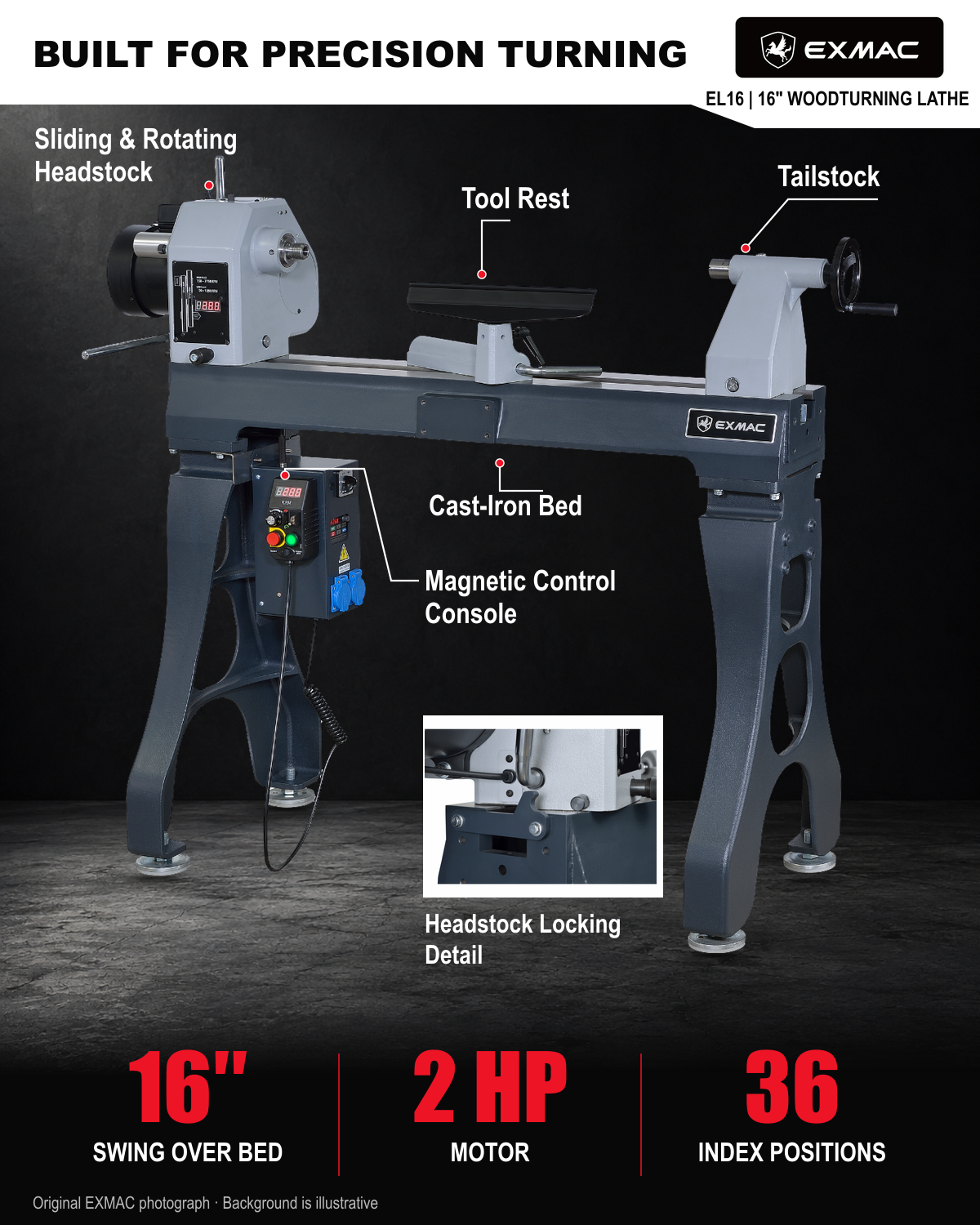

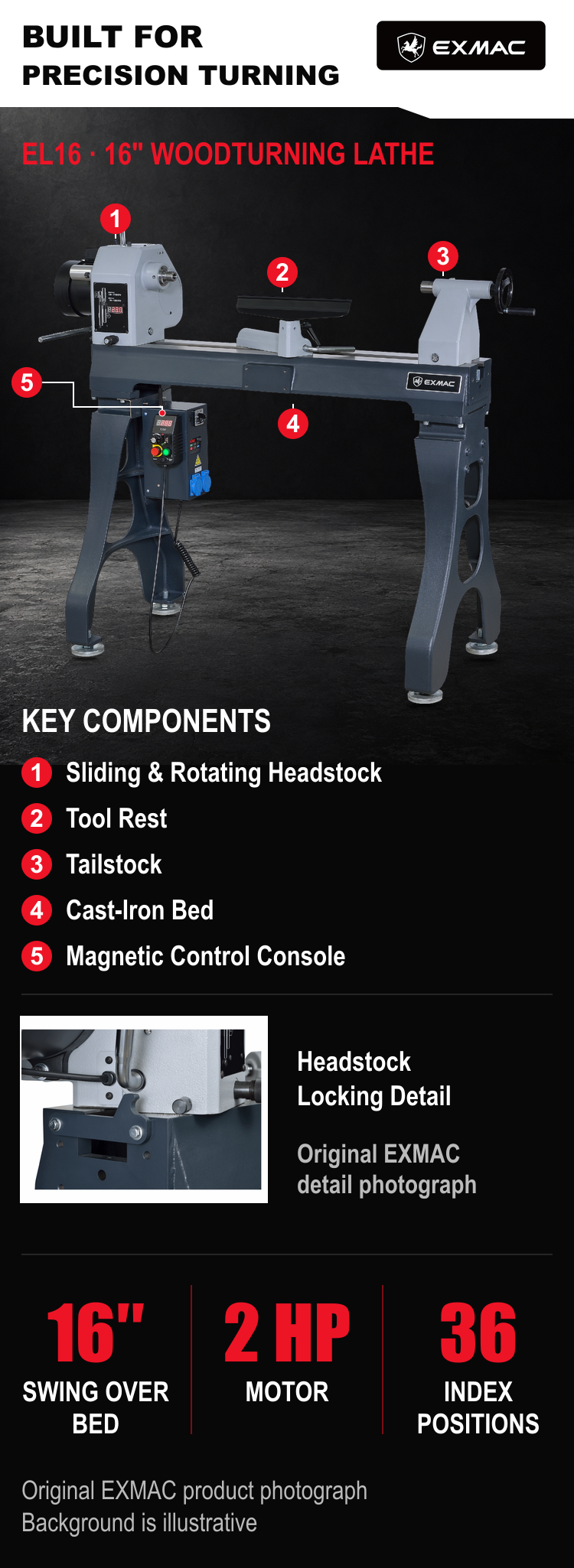

The EXMAC EL16 combines a 16-inch swing over the bed with a 2 HP motor and a cast-iron structure for bowl and spindle turning. Its sliding and rotating headstock allows flexible positioning, while the magnetic control console can be placed within comfortable reach.
Built for Bowl and Spindle Turning
Variable-speed control and forward/reverse operation support a range of turning tasks. The spindle provides 36 indexing positions at 10-degree intervals. Both headstock and tailstock use MT2 tapers, and the spindle thread is 1-1/4 inches x 8 TPI.
Expandable for Your Workshop

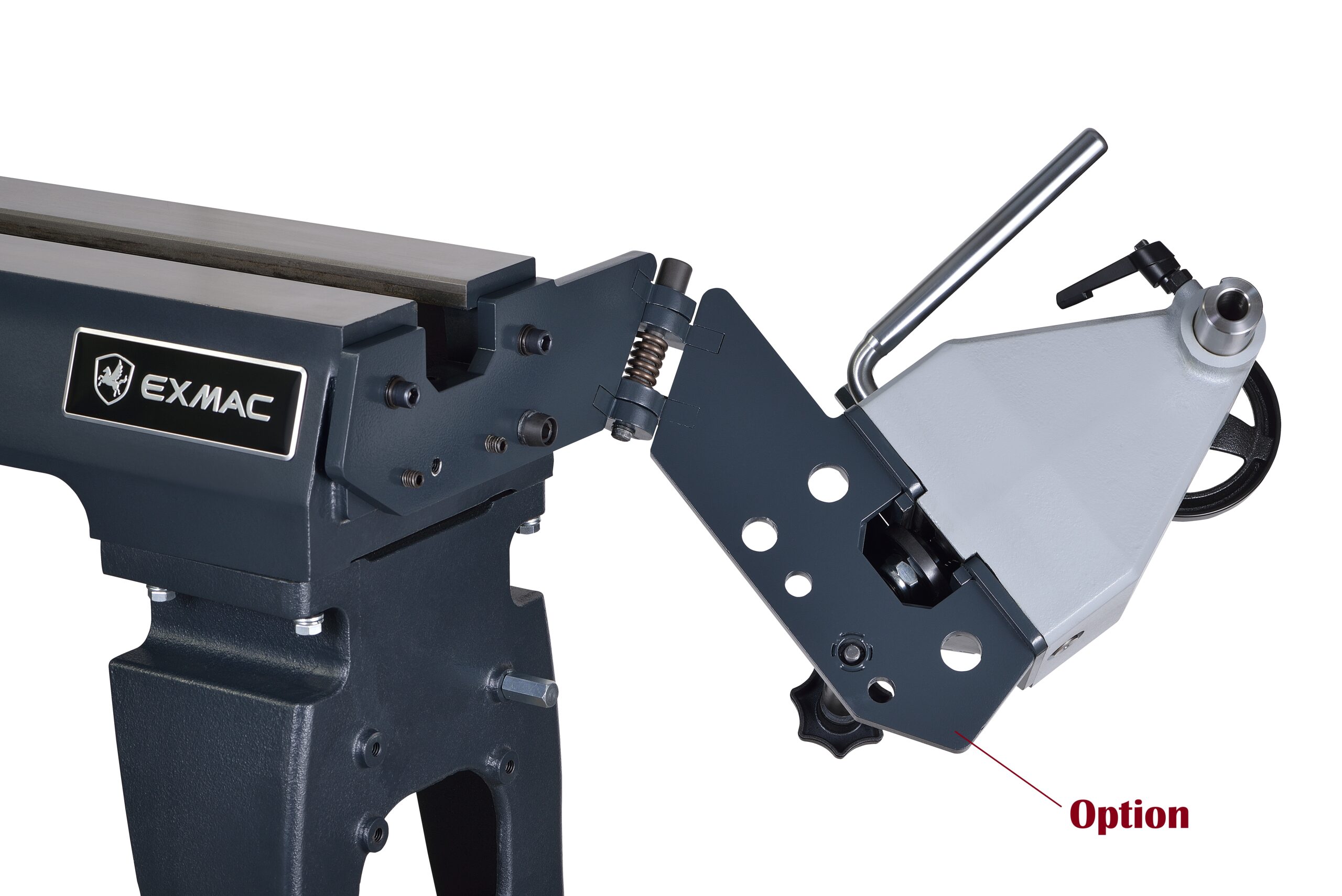

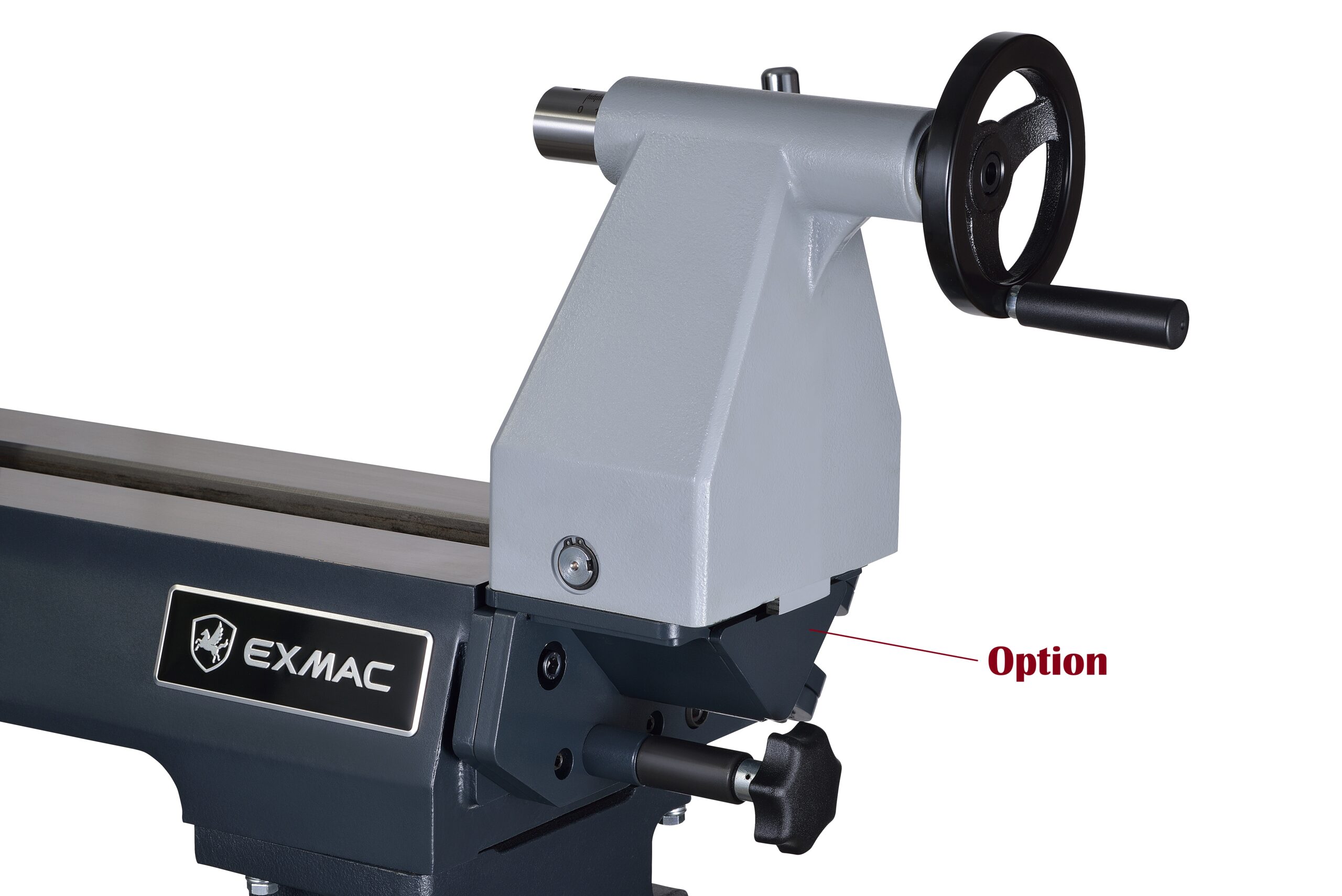

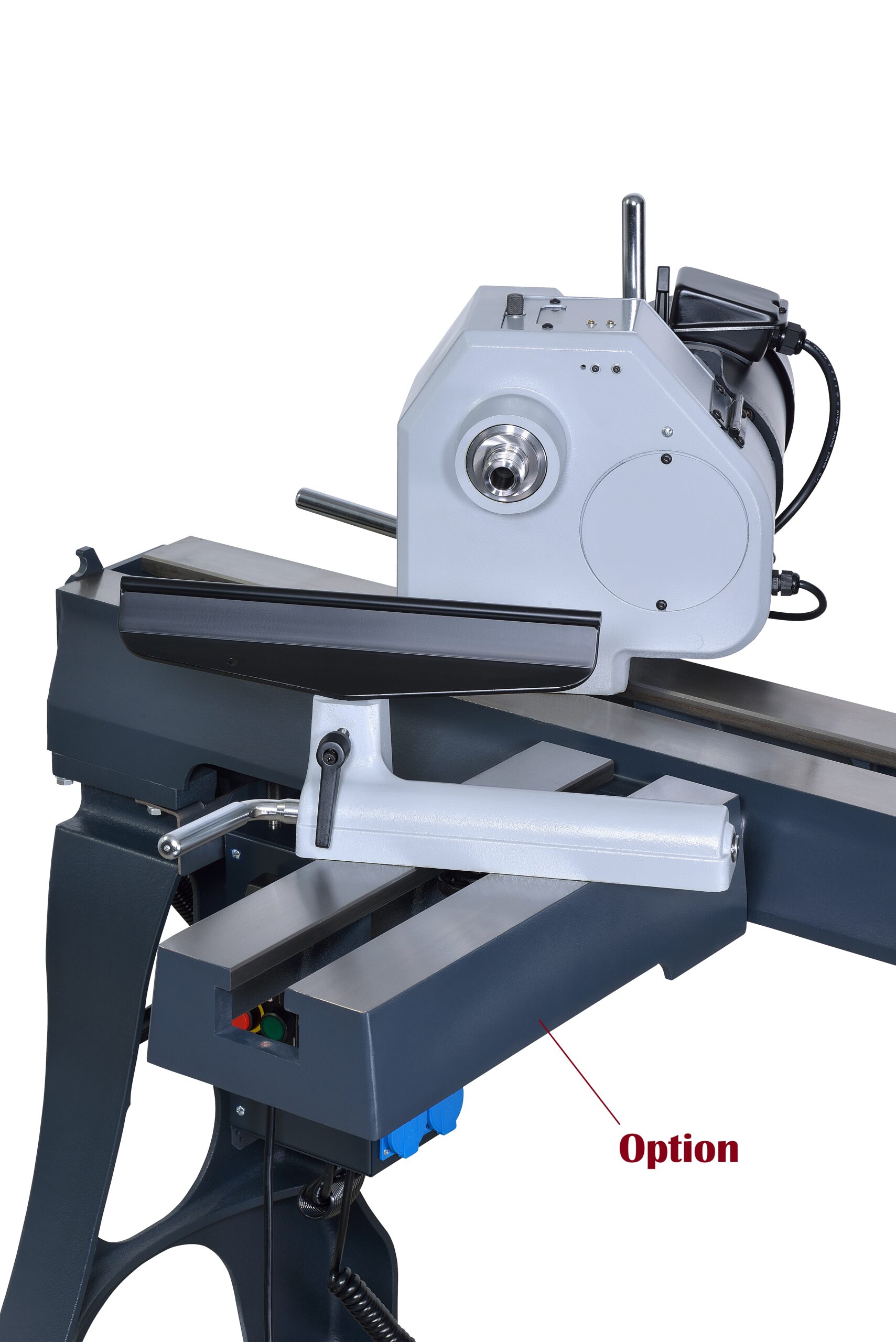

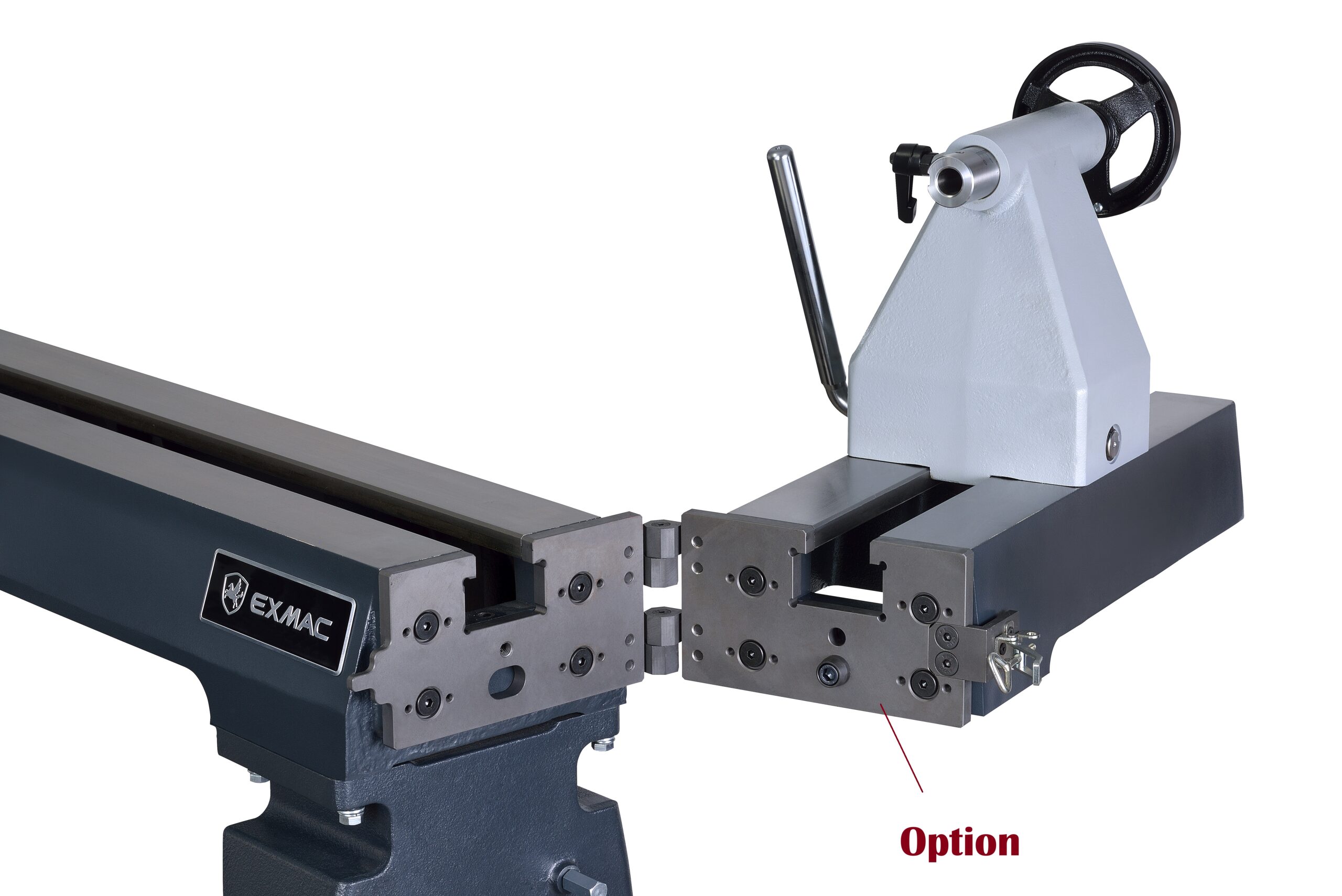

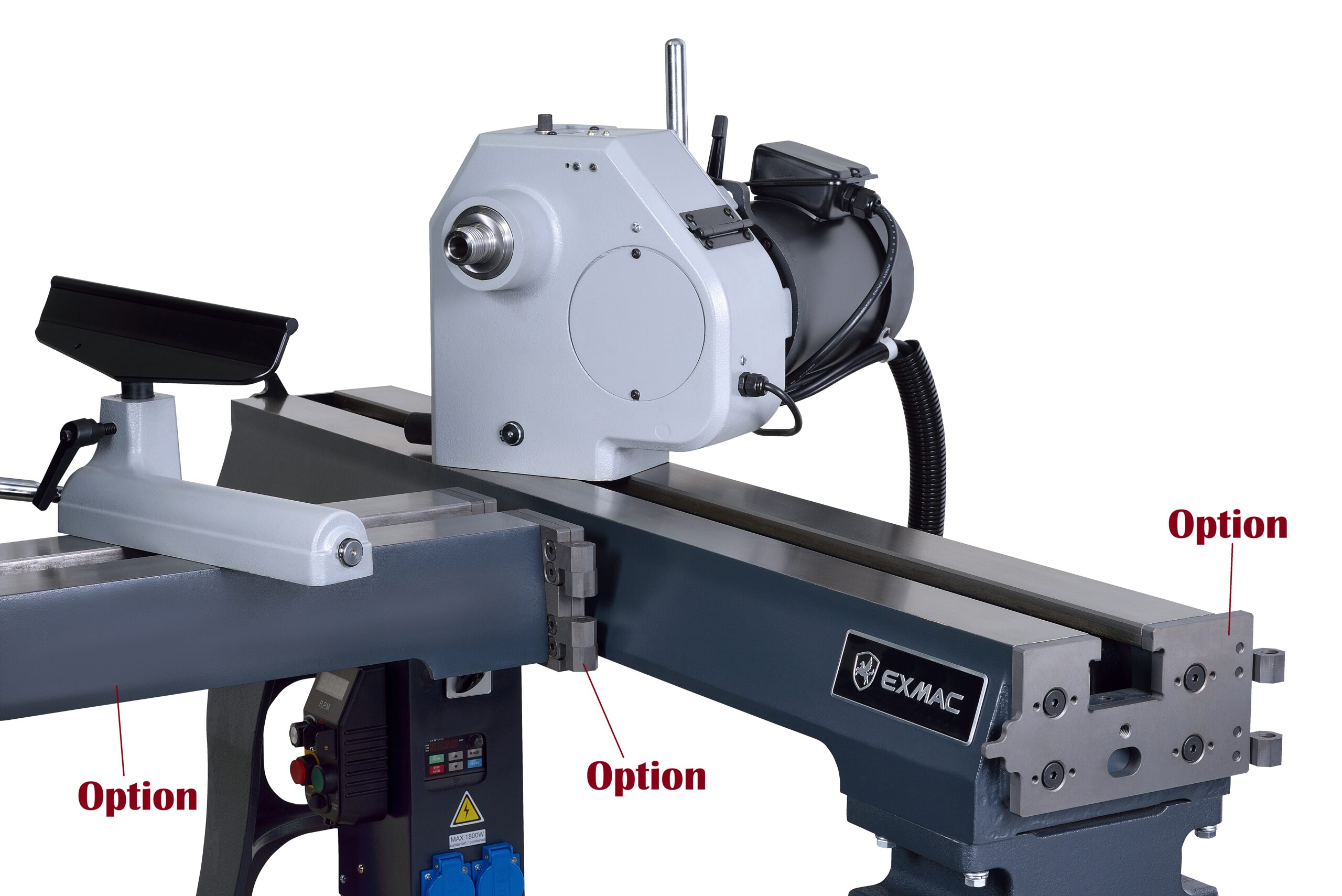

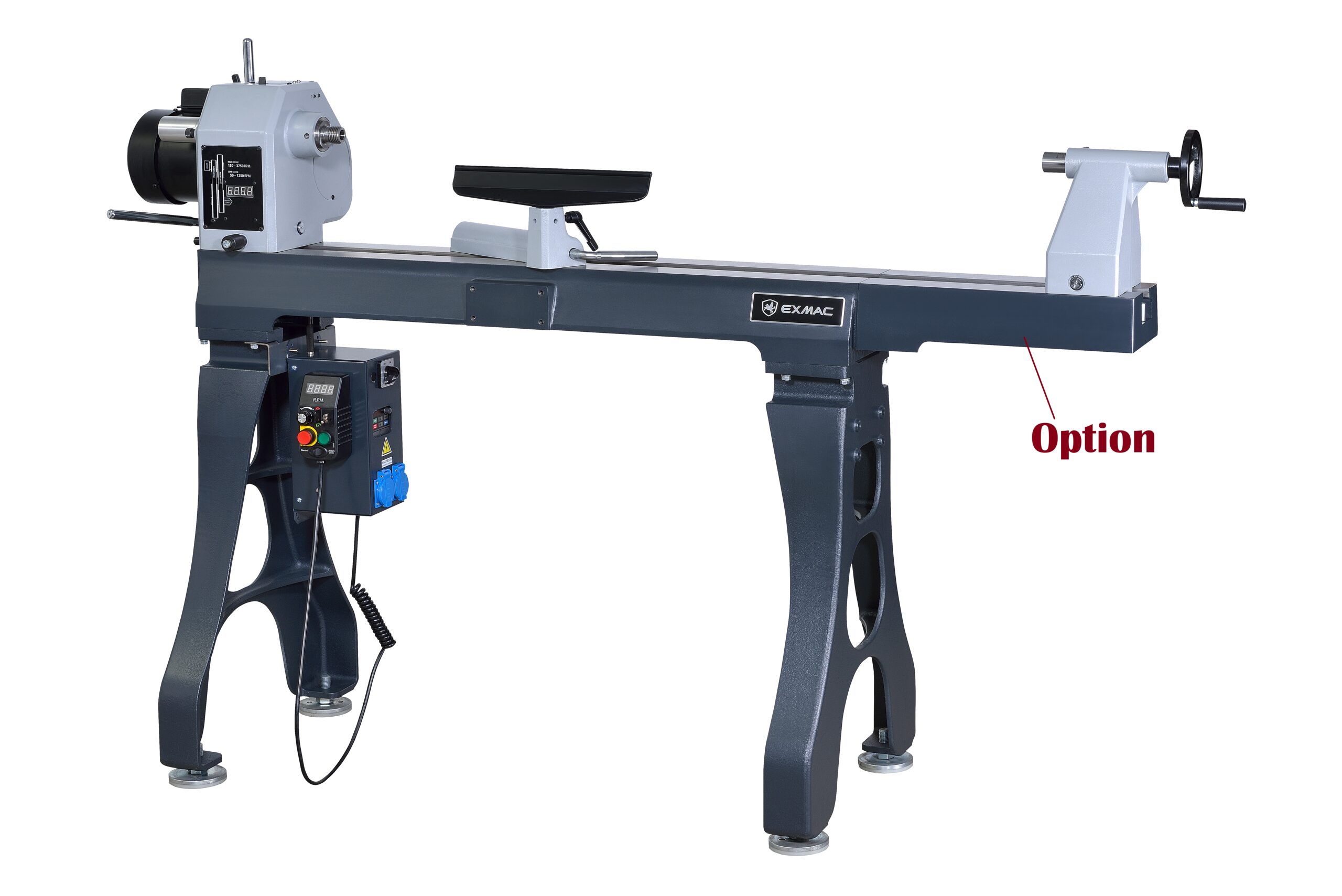

Optional EXMAC accessories are available separately. Check each accessory listing for EL16 compatibility before ordering.
Safety: Read the EL16 operating instructions before installation or use. Secure the workpiece, tool rest and tailstock as appropriate, and wear suitable eye and face protection.
Warranty
2 YEAR LIMITED WARRANTY
The EXMAC EL16 machine carries a two-year limited warranty for the original purchaser, subject to EXMAC's official warranty terms. Accessories have a separate one-year warranty.
Conditions & Warranty Claims
Coverage is subject to the limitations and exclusions in the official EXMAC warranty document. Misuse, unauthorized modifications or repairs, inadequate maintenance and consumable components may be excluded.
Keep your proof of purchase. When requesting warranty assistance from EXMAC, have the product model and serial number available. Product registration is not required for warranty eligibility.
Read EXMAC's full limited warranty and claim instructions (PDF)

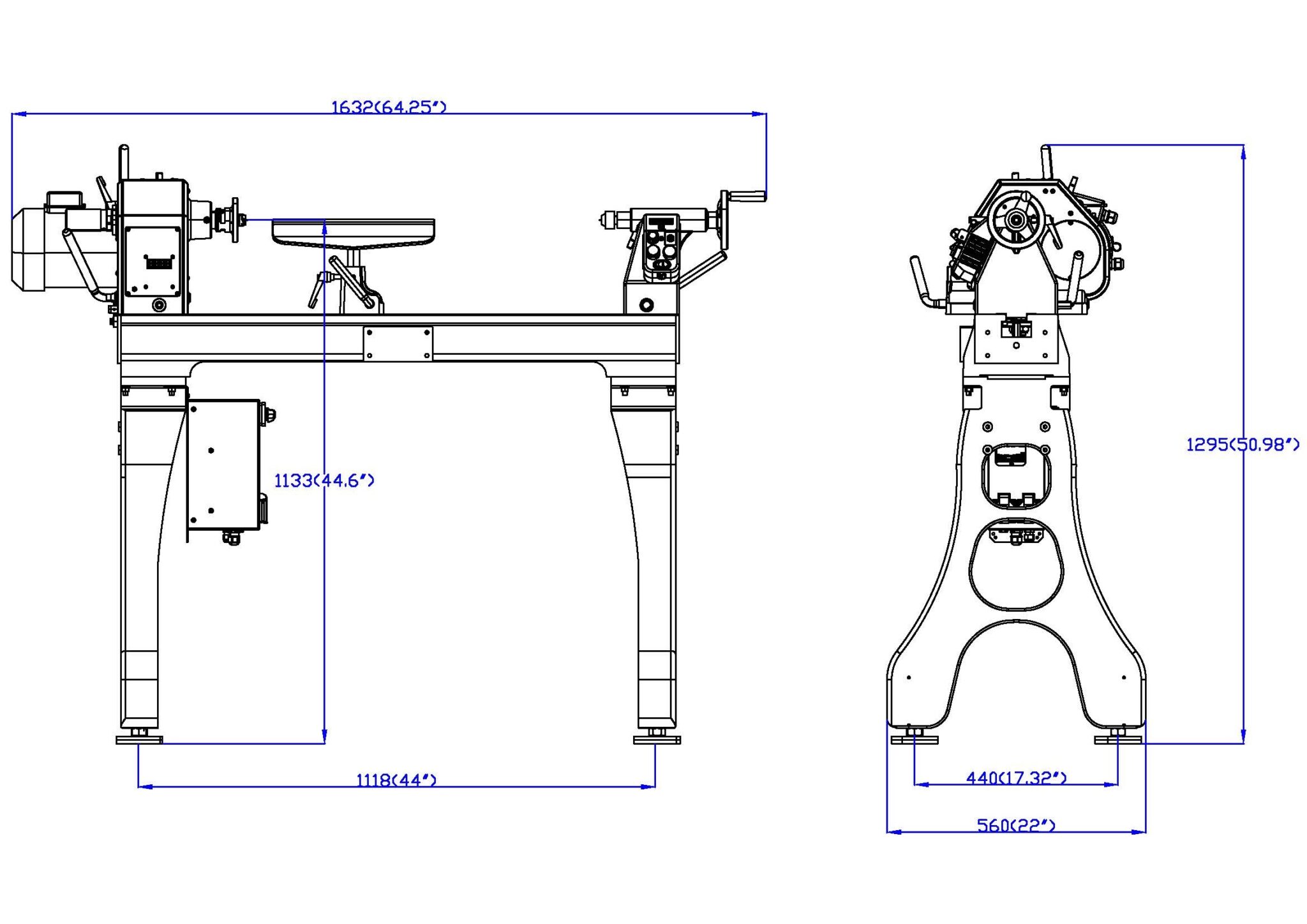

Product Size
Speed control
Direction
Control console
Variable speed
Forward / Reverse
Magnetic control console
Headstock
Bed construction
Sliding and rotating
Cast iron
Headstock taper
Tailstock taper
Index positions
MT2
MT2
36 positions / 10 degrees
